WPS

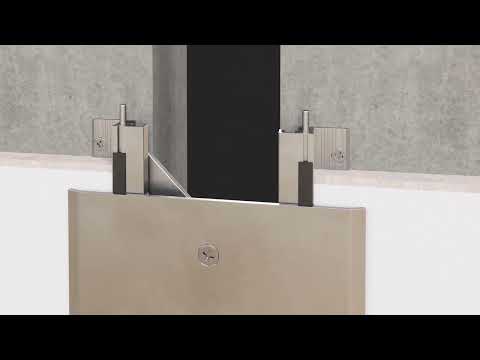

Introducing our WPS Wall Seismic Expansion Joint Cover Profile, meticulously designed to ensure optimal durability and performance.
  • Product Model WPS
  • Product Type Wall Expansion Joint Cover/seismic Profile
  • Material Aluminum Alloy 6063 T6
  • Finish Mill finish
#
Technical
Details
Technical
Drawings

Technical Details

Code Gap width
A (mm)
Visible width
B (mm)
Installation height
C (mm)
Thermal Movement
(mm)
Siesmic movement (mm)
WPS 25 25 120 18 30mm (+15 -15) 45mm (+30 15)
WPS 35 35 130 18 50mm (+25 -25) 65mm (+40 -25)
WPS 50 50 145 18 80mm (+40 -40) 90mm (+50 -40)
WPS 75 75 170 18 100mm (+50 -50) 130mm (+65 -65)
WPS 100 100 220 18 120mm (+60 -60) 190mm (+100 -90)
WPS 150 150 270 18 130mm (+65 -65) 250mm (+110 -140)
WPS 200 200 320 18 160mm (+80 -80) 310mm (+120 -190)
WPS 250 250 370 18 200mm (+100 -100) 360mm (+120 -240)

Technical Drawings

#

#
#

Feature and benefits

#

Seismic Movement Capability

Designed to accommodate horizontal and vertical movements caused by seismic activity.

#

Aesthetics

Its sleek aluminum design seamlessly integrates with surrounding structures, maintaining a visually appealing environment.

#

Easy Installation

Quick and hassle-free installation process with clear instructions provided.

#

Versatile Weather Endurance

Engineered with corrosion-resistant properties, this expansion joint cover is well-suited for indoor and outdoor applications.
