profile Details

SPZ
Seismic Movement Capability Designed to accommodate horizontal and vertical movements caused by seismic activity. Durable Construction Made from high-strength aluminum alloy for exceptional durability and long service life. Streamlined Aesthetics The low-profile design, coupled with multiple gasket color options, seamlessly enhances aesthetics while preserving functionality. Versatile Weather Endurance Engineered with corrosion-resistant properties, this expansion joint […]
  • Product Model SPZ

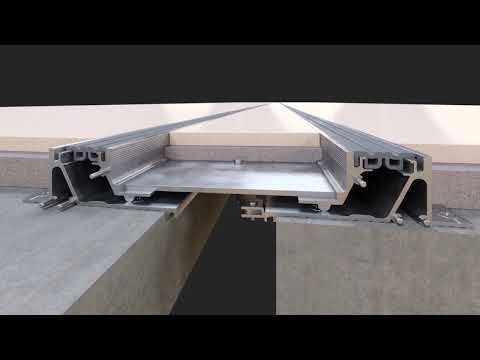

  • Product Type Floor Expansion Joint Cover/Pan Seismic Profile
  • Material Aluminum Alloy 6063 T6, EPDM Rubber Gaskets
  • Finish Mill finish
#
Technical
Details
Technical
Drawings

Technical Details

Code Gap width
A (mm)
Visible width
B (mm)
Installation height
C (mm)
Installation Width
E (mm)
Thermal movement
(mm)
Siesmic movement
(mm)
Load Capacity
SPZ 100 100 344 55 404 50mm (+25-25) 155mm (+100-55) Pedestrian
SPZ 150 150 394 55 454 50mm (+25-25) 205mm (+100-105) Pedestrian
SPZ 200 200 444 55 504 50mm (+25-25) 255mm (+100-155) Pedestrian
SPZ 250 250 494 55 554 50mm (+205-25) 305mm (+100-205) Pedestrian
SPZ 300 300 544 55 604 50mm (+25-25) 355mm (+100-255) Pedestrian
SPZ 400 400 644 55 704 50mm (+25-25) 455mm (+100-355) Pedestrian

Technical Drawings

#

#
#

Feature and benefits

#

Seismic Movement Capability

Designed to accommodate horizontal and vertical movements caused by seismic activity.

#

Durable Construction

Made from high-strength aluminum alloy for exceptional durability and long service life.

#

Streamlined Aesthetics

The low-profile design, coupled with multiple gasket color options, seamlessly enhances aesthetics while
preserving functionality.

#

Versatile Weather Endurance

Engineered with corrosion-resistant properties, this expansion joint cover is well-suited for indoor and outdoor applications. For outdoor use, a water barrier must be incorporated to ensure optimal performance.

#

Easy Installation

Quick and hassle-free installation process with clear instructions provided.
