profile Details

SPS-C
Seismic Movement Capability Designed to accommodate horizontal and vertical movements caused by seismic activity. Durable Construction Made from high-strength aluminum alloy for exceptional durability and long service life. Streamlined Aesthetics The low-profile design, coupled with multiple gasket color options, seamlessly enhances aesthetics while preserving functionality. Versatile Weather Endurance Engineered with corrosion-resistant properties, this expansion joint […]
  • Product Model SPS-C
  • Product Type Floor-Wall Expansion Joint Cover/Pan Seismic Profile
  • Material Aluminum Alloy 6063 T6, Sealant
  • Finish Mill finish
#
Technical
Details
Technical
Drawings

Technical Details

Code Gap width
A (mm)
Visible width
B (mm)
Installation height
C (mm)
Installation Width
E (mm)
Thermal movement
(mm)
Siesmic movement
(mm)
Load Capacity
SPS 100C 100 173 65 203 40mm (+20-20) 90mm (+60-30) Pedestrian
SPS 150C 150 223 65 253 40mm (+20-20) 140mm (+60-80) Pedestrian
SPS 200C 200 273 65 303 40mm (+20-20) 190mm (+60-130) Pedestrian
SPS 250C 250 323 65 353 40mm (+20-20) 240mm (+60-180) Pedestrian
SPS 300 300 373 65 403 40mm (+20-20) 290mm (+60-230) Pedestrian
SPS 400C 400 473 65 503 40mm (+20-20) 390mm (+60-330) Pedestrian

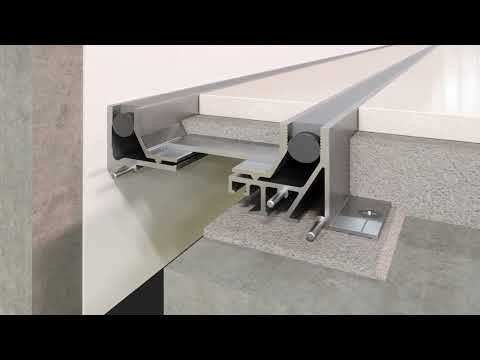

Technical Drawings

#

#
#

Feature and benefits

#

Seismic Movement Capability

Designed to accommodate horizontal and vertical movements caused by seismic activity.

#

Durable Construction

Made from high-strength aluminum alloy for exceptional durability and long service life.

#

Streamlined Aesthetics

The low-profile design, coupled with multiple gasket color options, seamlessly enhances aesthetics while
preserving functionality.

#

Versatile Weather Endurance

Engineered with corrosion-resistant properties, this expansion joint cover is well-suited for indoor and outdoor applications. For outdoor use, a water barrier must be incorporated to ensure optimal performance.

#

Easy Installation

Quick and hassle-free installation process with clear instructions provided.
