profile Details

SM

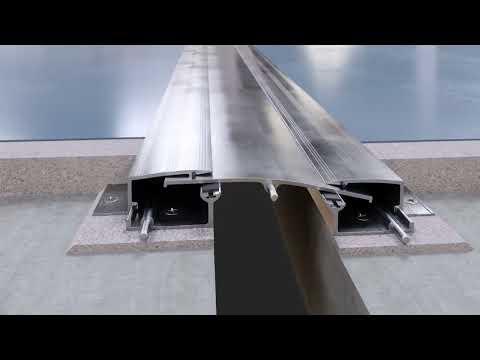

The SM Expansion Joint Profile is engineered to provide a versatile and noise-reducing connection in various applications. Rubber gaskets are strategically placed to ensure a secure and quiet connection.
  • Product Model SM
  • Product Type Floor Expansion Joint Cover/heavy-duty
  • Material Aluminum Alloy 6063 T6
  • Finish Mill finish
#
Technical
Details
Technical
Drawings

Technical Details

Code Gap width
A (mm)
Visible width
B (mm)
Installation height
C (mm)
Installation Width
D (mm)
Total movement
(mm)
Load Capacity
SM 25 25 135 25 181 55mm (+40-15) Private Vehicles
SM 50 50 160 25 206 65mm (+40-25) Private Vehicles
SM 75 75 185 25 231 80mm (+40-40) Private Vehicles
SM 100 100 210 25 256 80mm (+40-40) Private Vehicles

Technical Drawings

#

#
#

Feature and benefits

#

Smooth and Noise-Reducing Connection

This profile is engineered to provide a seamless and silent connection.

#

High-Quality Aluminum Construction:

Crafted from top-grade aluminum, this profile guarantees durability and longevity.

#

Versatile Application Range

This profile is versatile and suitable for various industries and applications. Whether you need it for industrial, commercial, or residential use, our expansion joint profile fits the bill.

#

Multi-Movement Directions

This profile is designed to accommodate multi-movement directions. It can handle lateral, axial, and angular movements, providing flexibility for complex applications.

#

High Load Capacity

It boasts a high load capacity, making it the ideal choice for heavy-duty applications.
