profile Details

JR-C

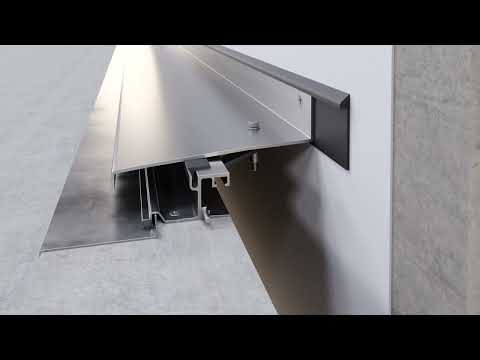

Our JR-C Floor-Wall (Roof-Corner) Seismic Profile, tailored for applications on concrete upstands in non-walkable areas. Designed for unparalleled performance during seismic events, it integrates seamlessly with aluminum flashing
  • Product Model JR-C
  • Product Type Floor-Wall (Roof-Corner) Expansion Joint Cover/Seismic Profile
  • Material Aluminum Alloy 6063 T6
  • Finish Mill finish
#
Technical
Details
Technical
Drawings

Technical Details

Code Gap width
A (mm)
Cover width
B (mm)
Installation height
C (mm)
Total movement
(mm)
Load Capacity
JR 25C 25 128 50 50mm (+35-20) Not applicable
JR 35C 35 138 50 70mm (+40-30) Not applicable
JR 50C 50 153 50 95mm (+50-45) Not applicable
JR 75C 75 176 50 130mm (+60-70) Not applicable
JR 100C 100 200 50 140mm (+60-80) Not applicable
JR 150C 150 252 50 195mm (+65 -130) Not applicable
JR 200C 200 303 50 245mm (+65 -180) Not applicable
JR 250C 250 353 50 295mm (+65 -230) Not applicable
JR 300C 300 403 50 345mm (+65 -280) Not applicable
JR 400C 400 503 50 445mm (+65 -380) Not applicable

Technical Drawings

#

#
#

Feature and benefits

#

Seismic Movement Capability

Designed to accommodate horizontal and vertical movements caused by seismic activity.

#

Water Tight Design

Specially designed for water-tight connections, preventing water infiltration for enhanced durability.

#

Aluminum Flashing Compatibility

Structurally designed to seamlessly accept aluminum flashing, providing additional weather protection

#

Durable Construction

Made from high-strength aluminum alloy for exceptional durability and long service life.

#

Multi Rubber Gasket

Equipped with a multi-rubber gasket system to ensure a smooth and water-tight connection between profile parts.

#

Easy Installation

Quick and hassle-free installation process with clear instructions provided.
